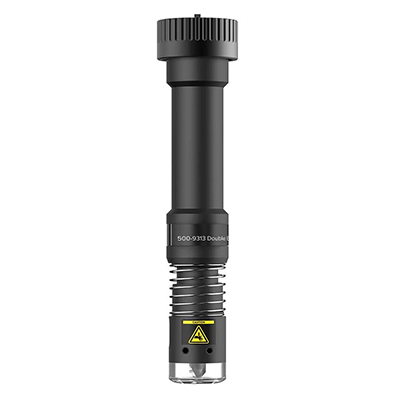

DOUBLE EDGE CUTOUT TOOL - with gliding d

  • Brand: Summa
  • Product Code: 500-9313

    Summa Single

    Edge Cut Out Tool

    #500-9313

    The Summa 500-9313 is the Double Edge Cutout Tool used on Summa F-Series flatbed cutters (F1612, F1832, F2630, etc.). It is designed for cutting thicker paper, cardstock, and thin cardboard/corrugated materials using a drag-knife style tool with a transparent gliding disk.

You Must be Logged in to Add the Item to your Cart.

Click Here to Login

Click Here to Register for a new Account

Description

    Summa Single

    Edge Cut Out Tool

    #500-9313

    The Summa 500-9313 is the Double Edge Cutout Tool used on Summa F-Series flatbed cutters (F1612, F1832, F2630, etc.). It is designed for cutting thicker paper, cardstock, and thin cardboard/corrugated materials using a drag-knife style tool with a transparent gliding disk.



    Typical Applications

    • Folding carton prototypes
    • Paperboard packaging
    • Cardstock displays
    • Thin corrugated materials
    • General cutout work on materials up to approximately 3–5 mm thick, depending on the blade used.



    Material to cut and characteristics

    • Paper
      • <  200 gr
    • Cardboard
      • 300-500 gr
    • Adhesive vinyl
    • Adhesive PVC
    • banner vinyl
    • Reflective sheeting
    • Hard foamboard
      • < = 1.2 mm
    • Polypropelene
      • < = 1.2 mm
    • Polycarbonate
      • < = 0.6 mm
    • Magnetic material

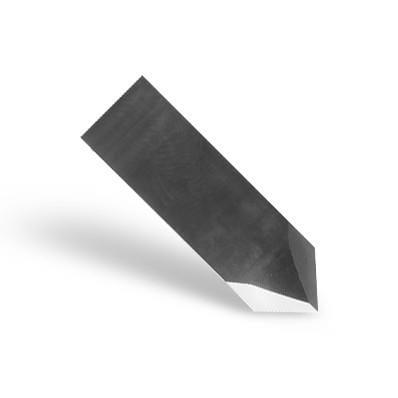

    500-9802 - Double Edge Cutout Knife 50°
    Max cutting thickness (with gliding disk) - 3 mm
    Max cutting thickness (without gliding disk) - 3 mm

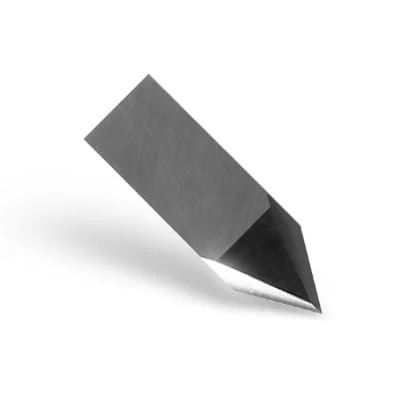

    500-9803 - Double Edge Cutout Knife 60°
    Max cutting thickness (with gliding disk) - 5 mm
    Max cutting thickness (without gliding disk) - 5 mm





    500-9804 - Double Edge Cutout Knife 50°
    Burr-Free
    Max cutting thickness (with gliding disk) - 3 mm
    Max cutting thickness (without gliding disk) - 3 mm
