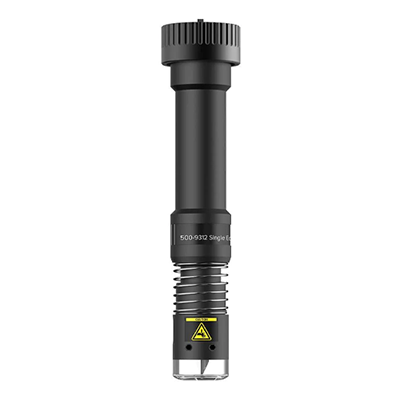

SINGLE EDGE CUTOUT TOOL - with gliding d

  • Brand: Summa
  • Product Code: 500-9312

    Summa Single

    Edge Cut Out Tool

    #500-9312-

    Summa 500-9312 is the Single Edge Cutout Tool for Summa F-Series flatbed cutters equipped with the Tangential Module. It is designed for detailed cutout work in thinner materials such as paper, cardboard, and vinyl

You Must be Logged in to Add the Item to your Cart.

Click Here to Login

Click Here to Register for a new Account

Description

    Summa Single

    Edge Cut Out Tool

    #500-9312

    Summa 500-9312 is the Single Edge Cutout Tool for Summa F-Series flatbed cutters equipped with the Tangential Module. It is designed for detailed cutout work in thinner materials such as paper, cardboard, and vinyl.



    Key specifications:

    • Part Number: 500-9312
    • Tool Type: Single Edge Cutout Tool
    • Blade Included: 65° Single Edge Cutout Blade (500-9801)
    • Compatible with: Summa F-Series Flatbed Cutters
    • Maximum material thickness: approximately 5 mm
    • Uses a transparent gliding disk to help achieve clean cuts on thin materials.
    • Detailed contour cutting where a static knife is preferred over oscillating tools.



    Typical applications:

    • Paper
      • < 200 gr
    • Cardboard 300-500 gr
    •  Adhesive vinyl
    •  Hard foamboard
      • <= 2 mm
    •  Polypropelene
      • <= 1.2 mm
    • Polycarbonate
      • <= 0.6 mm
    • Adhesive PVC
    • banner vinyl
    •  Magnetic material

    Uses 500-9801 - Single Edge Cutout Knife 65o
    Max cutting thickness (with gliding disk) - 6 mm
    Max cutting thickness (without gliding disk) - 6 mm
