Summa Creasing Tool

  • Brand: Summa
  • Product Code: SFCT

    Summa

    Creasing Tools

    The Summa F Series uses six creasing wheel options in the Tangential Module, each designed for different board thicknesses and fold characteristics. The wheel dimensions identify the diameter (D), radius (R), width (W), and height (H) of the crease profile.



    • Quick Selection Guide
    • #500-9324
      • Corrugated displays & shipping cartons:
    • #500-9325
      • Most corrugated packaging work:
    • #500-9326
      • ???????
    • #500-9327
      • Folding carton / SBS board
    • #500-9328
      • 1–2 pt cardstock:
    • #500-9329
      • Very thin paper stocks:
    • When a perforated fold line is preferred: Perforating Tool
    • For a typical sign and display shop running an F1612 or F1832, the 500-9326 (D25 R1.5 W8 H5.5) and 500-9327 (D25 R0.75 W1.5 H1.5) handle the majority of packaging and display board applications.



Available Options

You Must be Logged in to Add the Item to your Cart.

Click Here to Login

Click Here to Register for a new Account

Description

    Summa

    Creasing Tools

    Below is an overview of the six Summa creasing tools and their intended uses. Click on any of the part numbers and you will brought to that item on our website.

    • #500-9324

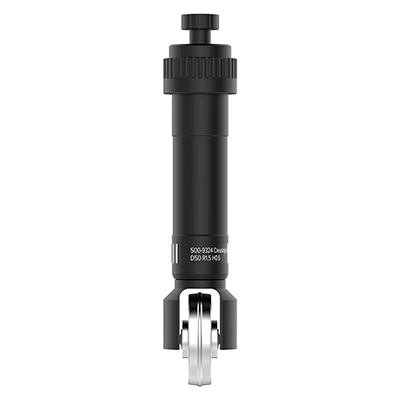

      • D50 R1.5 H0.6 for Summa F-Series flatbed cutters. It is designed for use in the Tangential Module and is intended for creasing thicker cardboard, corrugated board, packaging materials, and POS display materials before folding.
    • #500-9325
      • D25 R3 W8 H7Heavy corrugated board (B, C, BC flutes), thicker display materials. Produces a wide, deep crease for easy folding.
    • #500-9326
      • D25 R1.5 W8 H5.5General-purpose corrugated and folding carton work. The most commonly used crease wheel for packaging.
    • #500-9327
      • D25 R0.75 W1.5 H1.5Folding carton and lighter paperboard. Creates a narrower crease with less material displacement. D15 R0.35 W0.7 H1–2 pt
    • #500-9328

      • D15 R0.18 W0.7 H1.5–1 pt 1–2 point cardstock, greeting cards, presentation folders, and lightweight packaging.

    • #500-9329
      • Thin paper stocks under 1 pt. Designed for very fine, precise folds without cracking. Perforating Tool (often grouped with creasing applications)Separate toolCreates foldable perforation lines rather than compressed creases. Ideal for corrugated plastics and cartons requiring sharp 90° folds.
