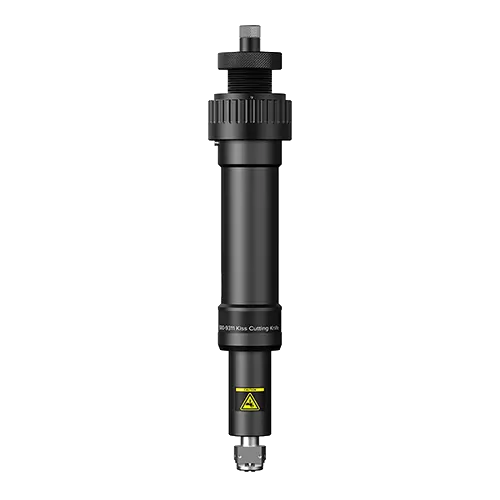

KISS CUTTING TOOL

Summa Single

Kiss Cutting Tool

#500-9311

Summa 500-9311 is the Kiss Cutting Tool for the Summa F Series flatbed cutters (used with the Tangential Module). It is designed to kiss-cut materials such as vinyl, banner media, and window film—cutting through the face material while leaving the liner intact.

Key details:

• Part Number: 500-9311
• Tool Type: Kiss Cutting Tool
• Compatible with: Summa F Series flatbed cutters
• Includes:
• Springs (120g, 650g, and 1800g)
• Standard nose piece (395-348)
• Standard tangential knife/blade holder assembly

Typical applications:

• Decals and stickers
• Vinyl graphics
• Window film
• Banner materials
• Any application requiring the liner to remain uncut

Click on the images of the blades to be directed to this item on our website

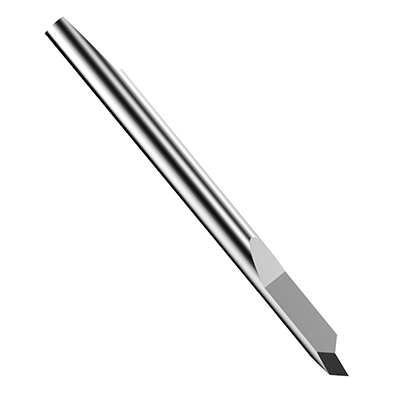

#390-534  is an OEM 36° Tangential Knife Blade ( sold in a 5-pack) used in Summa tangential cutters and T-Series plotters. It is designed for thin vinyl, masking films, labels, and other thin materials, providing very precise cuts and sharp corners. The blade is made from tungsten carbide for long life and is intended for materials up to approximately 0.25 mm (0.010") thick

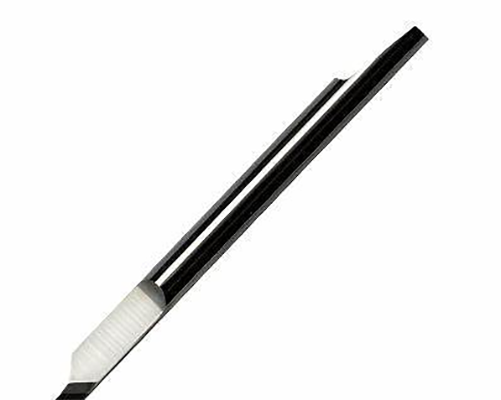

#390-560 Double Wedge Knife.is a 45° tangential knife blade used in Summa T-Series and F-Series cutters. It is designed for precision cutting of vinyl, masking films, reflective materials, and other sign-making media.

#390-551 is a 36° Tangential Double-Tip (Double-Sided) Knife Blade designed for Summa tangential cutting systems, including S Class T-Series, S2 T-Series, S3 TC-Series, and many F-Series flatbed cutters.

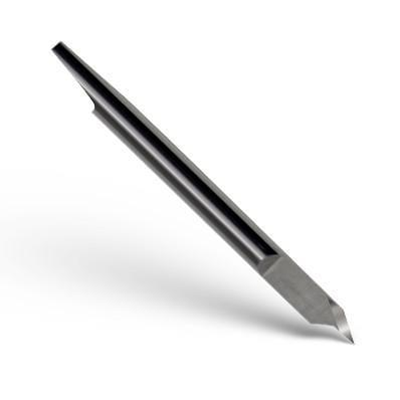

#390-550  60° is a 60° tangential carbide blade designed for Summa tangential cutting systems (S Class T-Series and many F-Series tools). It is commonly referred to as the Sandblast Blade because it excels at cutting thicker and tougher materials than standard vinyl-cutting blades.
