TANG KNIFE 45°, WEDGE 40/25°

  • Brand: Summa
  • Product Code: 390-560

    Summa

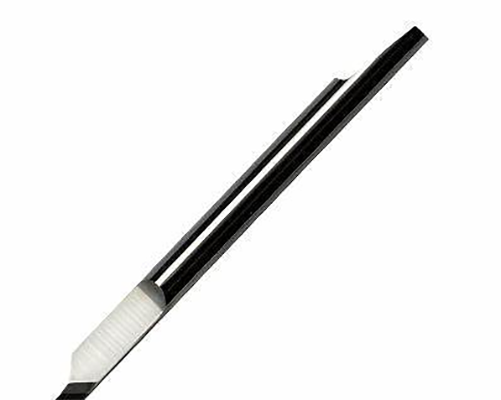

    45° Tangential Knife Blade

    #390-560

    Summa Part #390-560 is the 45° Tangential Knife Blade (Wedge 40°/25°) used in Summa tangential cutting systems. It is commonly used for:

    • Standard and larger vinyl graphics
    • Masking films
    • Reflective films
    • Magnetic materials
    • Window films
    • Sandblast materials
    • Kiss-cutting and through-cutting up to approximately 1.0 mm (0.039") thick

    Specifications

    Blade angle: 45°

    Wedge geometry: 40° / 25°

    Maximum cutting depth: 1.0 mm

    OEM Summa part number: 390-560

    Compatible with

    Summa S-Class T Series

    Summa S2 / S3 T-Series

    SummaSign / SummaSign Pro T-Series

    Summa F-Series flatbed cutters with tangential tools
