Summa

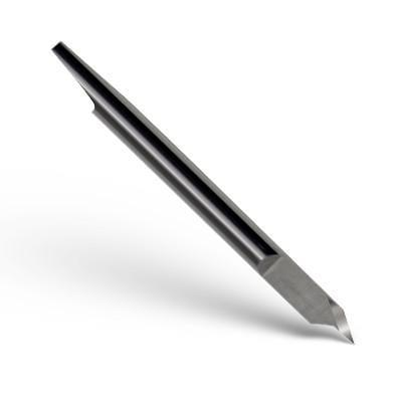

60° Tangential Knife Blade
#390-550
- Part Number: 390-550
- Blade Angle: 60°
- Maximum Cutting Depth: 1.2 mm
- Blade Diameter: 2.5 mm
- Material: Tungsten carbide / carbide construction for long life and consistent performance.
The Summa 390-550 is a 60° tangential carbide blade designed for Summa tangential cutting systems (S Class T-Series and many F-Series tools). It is commonly referred to as the Sandblast Blade because it excels at cutting thicker and tougher materials than standard vinyl-cutting blades.
Key Specifications
You Must be Logged in to Add the Item to your Cart.
Description
- Part Number: 390-550
- Blade Angle: 60°
- Maximum Cutting Depth: 1.2 mm
- Blade Diameter: 2.5 mm
- Material: Tungsten carbide / carbide construction for long life and consistent performance.
- Sandblast stencil
- Reflective films
- Magnetic material
- Cardboard
- Felt
- Rubber
- Heavy PVC banner materials
- Window films
- Thick adhesive vinyls and specialty media
- The 60° tip geometry provides a sharper point than a standard 36° blade, allowing it to penetrate thicker materials more effectively.
- Excellent for both kiss-cutting and through-cutting heavier media.
- Longer blade life due to carbide construction.
Summa
60° Tangential Knife Blade
#390-5500
The Summa 390-550 is a 60° tangential carbide blade designed for Summa tangential cutting systems (S Class T-Series and many F-Series tools). It is commonly referred to as the Sandblast Blade because it excels at cutting thicker and tougher materials than standard vinyl-cutting blades.
Key Specifications
Recommended Applications
The 390-550 is intended for thicker or denser substrates, including:
Advantages
